Metasploit Framework

Metasploit Framework (MSF)

The Metasploit Framework (MSF) is an open-source, robust penetration testing and exploitation framework that is used by penetration testers and security researchers worldwide.

Essential Terminology

Interface – Methods of interacting with the Metasploit Framework.
Module – Pieces of code that perform a particular task, an example of a module is an exploit.
Vulnerability – Weakness or flaw in a computer system or network that can be exploited.
Exploit – Piece of code/module that is used to take advantage a vulnerability within a system, service or application.
Payload – Piece of code delivered to the target system by an exploit with the objective of executing arbitrary commands or providing remote access to an attacker.
Listener – A utility that listens for an incoming connection from a target.

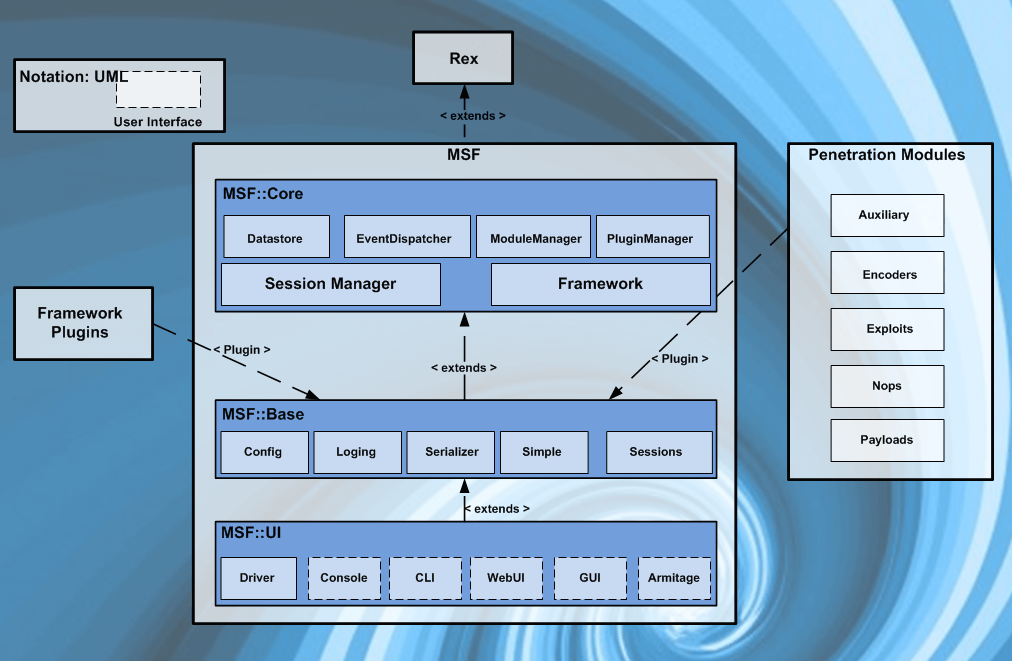

Metasploit Framework Architecture

test

MSF Modules

Exploit - A module that is used to take advantage of vulnerability and is typically paired with a payload.
Payload - Code that is delivered by MSF and remotely executed on the target after successful xploitation. An example of a payload is a reverse shell that initiates a connection from the target system back to the attacker.
Encoder - Used to encode payloads in order to avoid AV detection. For example, shikata_ga_nai is used to encode Windows payloads.
NOPS - Used to ensure that payloads sizes are consistent and ensure the stability of a payload when executed.
Auxiliary - A module that is used to perform additional functionality like port scanning and enumeration.

MSF Payload Types

Unstaged : Payload is sent to system along with exploits
Staged : A staged payload is sent. The first part (stager) contains a payload that is used to establish a reverse connection back to the attacker, download the second part of the payload (stage) and execute it.
- Stagers : Establish stable communication.
- Stage : Payload component downloaded by stagers.

The Meterpreter (Meta-Interpreter) payload is an advanced multi-functional payload that is executed in memory on the target system making it difficult to detect.It communicates over a stager socket and provides an attacker with an interactive command interpreter on the target system that facilitates the execution of system commands, file system navigation, keylogging and much more.

MSF stores modules under the following directory on Linux systems: /usr/share/metasploit-framework/modules
User specified modules are stored under the following directory on Linux systems: ~/.ms4/modules

Setup and Configuration

Install metasploit-framework
Start postgresql service
Initialize msfdb
Use msfconsole command

msfconsole Fundamentals

LHOST , LPORT are set attacker IP and Port Number.
RHOST/RHOSTS , RPORT are set to victim’s IP/IPs and Port Number.
Use search to find modules , use to use modules, set to set value, unset to remove value , run or exploit to run module.

Workspaces

Workspaces allow you to keep track of all your osts, scans and activities and are extremely useful when conducting penetration tests as they allow you to sort and organize your data based on the target or organization.

Usage:

workspace : List workspaces
workspace -a name : Add workspace
workspace -d name : delete workspace
workspace name : Switch workspace
workspace -r old new : Rename workspace

Import nmap result into msfconsole

Do nmap scan and store output in XML format.Create a workspace. Import results using db_import nmap_xml_result command.

Use db_nmap to perform nmap scan.

hosts : Host in nmap results services : Services discoverd vulns : Find vulnerabilities

Route traffic through machine

Run following command on meterpreter session. run autoroute -s IP_to_route_through

Information gathering

FTP

ftp_version : Enumerate version
ftp_login : Bruteforce credentials
anonymous : Verify if anonymous login is allowed

SSH

ssh_version : Enumerate version
ssh_login : Bruteforce credentials
ssh_enumusers : Enumerate users

SMB

smb_version : Enumerate version
smb_enumusers : Enumerate users
smb_enumshares : Enumerate shares
smb_login : Bruteforce credentials

SMTP

smtp_version : Enumerate version
smtp_enum : Enumerate users

HTTP

http_version : Enumerate version
http_header : Get header information
robots_txt : robots.txt file
dir_scanner : Directory enumeration
files_dir : Files enumeration
http_login : Bruteforce credentials

MySql

mysql_version : Enumerate version
mysql_login : Credentials bruteforce
mysql_enum : Enumerate users
mysql_sq l: Interact with sql server
mysql_schemadump : Dump schema structure of database

msfvenom

Generating msfvenom payload

msfvenom –list payloads : To list all payloads msfvenom –list format : To list all formats of payload

Staged payload : /meterpreter/type Unstaged payload : /meterpreter_type

-p : payload path LHOST : Attacker IP LPORT : Attacker Port -f : file type like exe -a : architecture

-e : encoder (-e x86/shikata_ga_nai) -i : iterations of encoding

-x : inject payload in actual software and replace it to exploit -k : keep original functionality of software plus exploit

meterpreter session basic

sessions : Show all ongoing sessions ( -C : Run meterpreter command on any session -l : list active session -k : kill session -n : name session -i : id of session )

sysinfo : System Information getuid : user permission and level download : download file upload : upload file checksum md5 : MD5 checksum getenv PATH : get environment path search : search for file ( -f : file extension -d : directory to search in ) shell : native session ps : process list migrate id : migrate to process execute -f command : execute command on machine

Upgrade shell to meterpreter

use multi/manage/shell_to_meterpreter to upgrade use sessions -u id

Windows POST

getsystem : Upgrade user privilege
show_mount : Show mounted devices
hashdump : Dump hashes
pgrep name : Get PID of process
migrate : migrate to other service

post/windows/manage/migrate : migrate to other service post/windows/manage/archmigrate : migrate architecture

windows/gather/win_privs : Gather user windows privilege windows/gather/enum_logged_on_users : Gather information regarding logged in users windows/gather/checkvm : Check if machine is Virtual machine windows/gather/enum_applications : Enumerate installed application versions windows/gather/enum_av_excluded : Excluded folders from antivirus scan windows/gather/enum_computers : Enumerate computers included in AD Domain. windows/gather/enum_patches : Enumerate patches installed on system windows/gather/enum_shares : Enumerate shares target is part of

UAC bypass

windows/local/bypassuac_injection : UAC bypass (Match architecture for payloads)

Persistence on windows

windows/local/persistence_service : Add persistence via service

windows/manage/enable_rdp : Enable RDP on system Use net user user password for adding password to users. Use xfreerdp /u:username /p:password /v:host to connect to RDP.

Keylogging

Get meterpreter session keyscan_start : Start key logging keyscan_dump : Dump captured key_stroke keyscan_stop : Stop keylogging

Windows logs clearing

Logs can be accessed from Event Viewer We require elevated privilege for clearing logs Use clearev in meterpreter command to clear logs

Linux Post Exploitation Modules

Modules use to gather information post exploitation phase.

post/linux/gather/enum_configs : Enumerate config files such as sshd
post/multi/gather/env : Get Environment variables
post/linux/gather/enum_network : Enumerate Network details
post/linux/gather/enum_protections : Enumerate system hardening mechanisms
post/linux/gather/enum_system : Enumerate system information like cronjobs
post/linux/gather/checkcontainer : Check if system is running in container
post/linux/gather/checkvm : Check if system in running in Virtual Environment
post/linux/gather/enum_users_history : Enumerate User history stored in command history files
post/multi/manage/system_session : Create Reverse TCP shell with environment already present on system.
post/linux/manage/download_exec : Download and run file with bash.

Exploiting vulnerable program

ps aux to find running services check if any service is vulnerable

exploit/unix/local/chkrootkit : To get root privilege

Hashdump

post/multi/gather/ssh_creds : Gather SSH credentials from .ssh directory
post/multi/gather/docker_creds : Gather cred from .docker directory
post/linux/gather/hashdump : Dump hashes from system
post/linux/gather/ecryptfs_creds : Gather cred from .ecrypts directories
post/linux/gather/enum_psk : Gather wireless security credentials
post/linux/gather/enum_hexchat : Gather cred from hexchat and xchat config files
post/linux/gather/phpmyadmin_credsteal : Gather phpmyadmin cred
post/linux/gather/pptpd_chap_secrets : Gather PPT VPN information
post/linux/manage/sshkey_persistence : Add SSH key to user for remote login

Establishing Persistence On Linux

Persistence consists of techniques that adversaries use to keep access to systems across restarts, changed credentials, and other interruptions that could cut off their access.

Add user on system having root privilege and name of service account such as ftp. useradd -m username -s shell passwd username usermod -aG root username usermod -u user_id username

linux/local/cron_persistence : Manipulate cronjob for persistence exploit/linux/local/service_persistence : Add persistence via service post/linux/manage/sshkey_persistence : Add SSH key for persistence

Pivoting

Pivoting is a post exploitation technique that involves utilizing a compromised host to attack other systems on the compromised host’s private internal network.

run autoroute -s ip_subnet

port forwarding via meterpreter session portfwd add -l local_port -p pivot_port -r pivot_machine

While running attack on pivot machine, Change payload to bind payload and set LHOST to machine we have exploited.

Armitage

GUI version of msfconsole
